The Starter Relay and Why a Mower Won't Start

...
old lawnmower in a great football field image by Ramon Grosso from Fotolia.com

A lawnmower requires several amperes of electrical current to start the engine. For safety reasons, a lawnmower (and other electric-start internal combustion powered vehicles) contains two parts to the starting circuit: a start switch circuit and a relay circuit. Since an electromechanical relay can only be used for a specified number of cycles before failure, a faulty starter relay can prevent a lawnmower from starting.

Why a Lawnmower Contains a Starter Relay

...

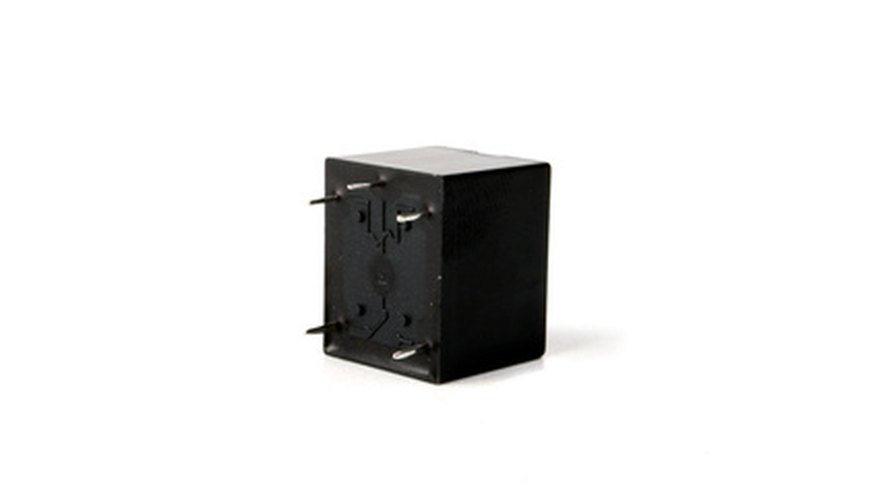

12 volt relais, relay image by Sascha Zlatkov from Fotolia.com

A relay allows a low-power, light-duty switch to actuate or disengage the starter circuit without being directly wired to the starter circuit itself. If the lawnmower starter circuit did not contain a relay, heavy-duty wiring would have to be wired to the lawnmower starter switch. This would pose a potentially fatal shock hazard if the starter switch or starter circuit wiring became damaged. The starter switch would also be prone to electrical arcing and excessive heat, which would eventually destroy the switch and potentially damage the lawnmower.

  • A lawnmower requires several amperes of electrical current to start the engine.
  • For safety reasons, a lawnmower (and other electric-start internal combustion powered vehicles) contains two parts to the starting circuit: a start switch circuit and a relay circuit.

Why a Bad Relay Prevents a Lawnmower from Starting

When the starter switch is turned on, the switch circuit provides power to an electromagnet inside the relay. This electromagnet pulls the relay switching mechanism closed and engages the relay circuit. The relay circuit provides power from the battery to the starter.

If either the electromagnet or the switching mechanism in the relay is faulty, the relay circuit will not engage. This prevents electrical current from flowing to the starter from the battery.

Why a Bad Switch Prevents a Lawnmower from Starting

...
Motorcycle key Switch image by Jim Mills from Fotolia.com

Since the switch circuit provides power to the electromagnet in the relay, the switch circuit is just as important as the relay circuit. If the switch is broken, the switch circuit will not provide electrical current to the electromagnet. Without electrical current flowing through it, the electromagnet will not work and the relay cannot be actuated.

  • When the starter switch is turned on, the switch circuit provides power to an electromagnet inside the relay.

Other Considerations

Both the switch circuit and the relay circuit require a power source and transmission lines (wires) to operate properly. If there is a break in the wire on either side of the circuit, or if the power source connection is loose or faulty, this will prevent the lawnmower from starting as well.
