How to Make a Waterfall Dam
Waterfalls, with their pleasant sounds and appealing aesthetics, integrate well into backyard water features. Introducing a steep drop into a stream creates a cascade. Making a waterfall dam provides a way of accomplishing this artificially. The barrier you construct across a flow of water can alter the course's natural inclination by changing a gradual slope to a step-like formation, allowing water to "pile up" above the dam before suddenly dropping down to the original stream bed.
Select your site. For natural streams, choose a location with steep banks of rock or impermeable clay, preferably at a bottleneck in the flow. For man-made waterways, create a site using the same guidelines. (Smaller flows, more common to backyard water features, present lower risks of dam failure, minimizing the importance of the site's features.)
Estimate the cross-sectional area of the stream. To do so, measure the width and maximum depth of the flow at its peak (after a heavy rainstorm, for example). Multiply those two values together to find a generous approximation of the cross-sectional area, allowing for a factor of safety.
- For natural streams, choose a location with steep banks of rock or impermeable clay, preferably at a bottleneck in the flow.
- To do so, measure the width and maximum depth of the flow at its peak (after a heavy rainstorm, for example).
Determine the maximum height of your dam. The height of the banks limits this value, both at the dam site and upstream, to prevent the collected water from rising above the stream's normal boundaries and finding a new path around the dam.

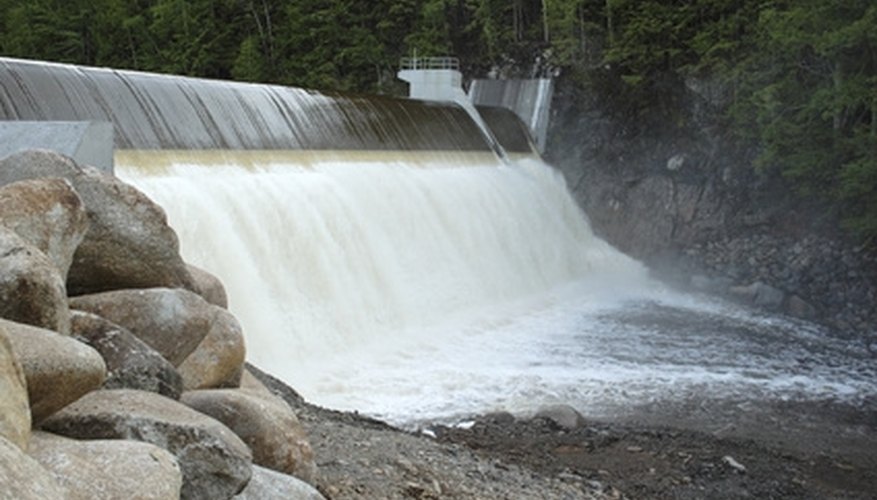

Determine the dimensions of the spillway, or the cut-out section in the top of a dam wall that water flows through. A spillway keeps the river within its banks as it passes over the waterfall and ensures that the stream's flow never rises above the top of the dam. Use a cut-out with the same area as the cross-section you found in Step 2, though you may choose to change the dimensions. Wider spillways allow for larger drop heights, but be sure that the stream doesn't exceed the width of the banks downstream.
Draw a picture of the riverbed and dam, carefully labeling the dimensions. Include the height and width of the spillway and wing walls. Wing walls, the tallest sections of the dam wall, extend above the level of the spillway and maintain the flow of water over the spillway. Draw your wing walls flat on top, and extend them into the banks on both sides. The thickness of the dam depends on the size of the flow, and may range from 6 inches for very small streams to 2 feet or more for larger waterways.
- Determine the maximum height of your dam.
- The height of the banks limits this value, both at the dam site and upstream, to prevent the collected water from rising above the stream's normal boundaries and finding a new path around the dam.
Prepare your site for construction. If you choose to work with an existing stream, wait until the driest time of the year, create an alternate channel for the water to pass through while you work (making sure that it will be possible to close it when you finish the project) and prepare a trench in the clay or rock. Turn off the pump if working with a man-made waterway, and remove any algae or dirt to ensure a strong, impermeable connection between the concrete and building surface.

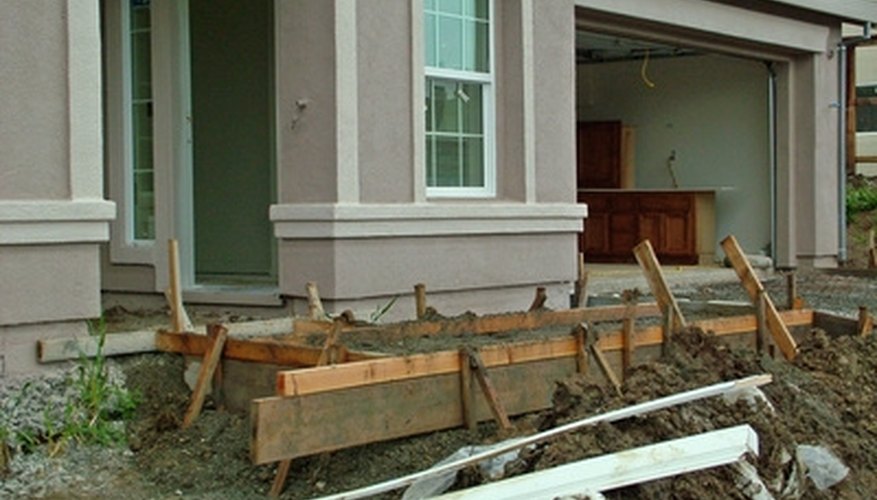

Use the wood, hammer and nails to create forms for your dam. Forms will help guide and support the concrete and rocks during construction, so be sure they reflect the dimensions of your design. Build forms in sections unless you are planning a very small structure.
Mix your concrete mortar in the wheelbarrow using Portland cement, clean sand and water. Use about six times more sand than cement, and just enough water to make the concrete workable (too much will weaken the final product). Begin by mixing small batches of concrete until you gain confidence with the proportions.
- Prepare your site for construction.
- If you choose to work with an existing stream, wait until the driest time of the year, create an alternate channel for the water to pass through while you work (making sure that it will be possible to close it when you finish the project) and prepare a trench in the clay or rock.
Use a proportion of 65 percent stone to 35 percent concrete mortar in the construction of the dam wall to meet the standard of the Rainwater Harvesting Implementation Network for watertight structures. Starting from the base, alternate laying cement and rocks, using the cement as glue to fill spaces between the stones. Select rocks of varying sizes that fit together well, and make sure that no two stones come in contact with each other.
Use the tape measure to determine when the wall has reached the level of the spillway. Reposition the forms to build the wing walls, leaving open a cut-out of the size you calculated in Step 4. After building the wing walls, place a thin layer of wet concrete along the top of the dam and use the trowel to smooth it out.
Plaster the sides of the dam with concrete if desired, and use the trowel to create texture.
- Use a proportion of 65 percent stone to 35 percent concrete mortar in the construction of the dam wall to meet the standard of the Rainwater Harvesting Implementation Network for watertight structures.
- Plaster the sides of the dam with concrete if desired, and use the trowel to create texture.
Place a pile of rocks or a thin layer of concrete on the stream bed downstream of the dam. That prevents the cascading water from eroding the soil and possibly causing dam failure. Skip this step if your dam is built on rock.
Sprinkle water on your dam every day for a week after construction to keep the cement from drying out too quickly during the curing process. This step increases the strength of the structure and avoids cracking, especially in hot, dry climates.
- Sifting and cleaning your sand and using clean water to mix the concrete adds to the strength of the structure.
- Consider using extra rocks and concrete to add texture to your dam, creating natural-looking outcroppings and places for plants to grow.
- If you have a limited budget, consider building a dam out of compacted earth--instead of concrete--but don't expect it to last as long.
- Be careful when building a waterfall dam on a natural stream, especially one with flows that vary significantly after rain events or snow melts. Water will pass around the ends of a dam if your spillway opening is too small, possibly causing erosion and dam failure. To protect your investment, you may want to consult a professional to calculate the appropriate size for the opening.
- Do not construct a thin dam with a drop height of more than three feet without internal reinforcement. These can be made with rebar, but should only be designed with further research or professional assistance.
